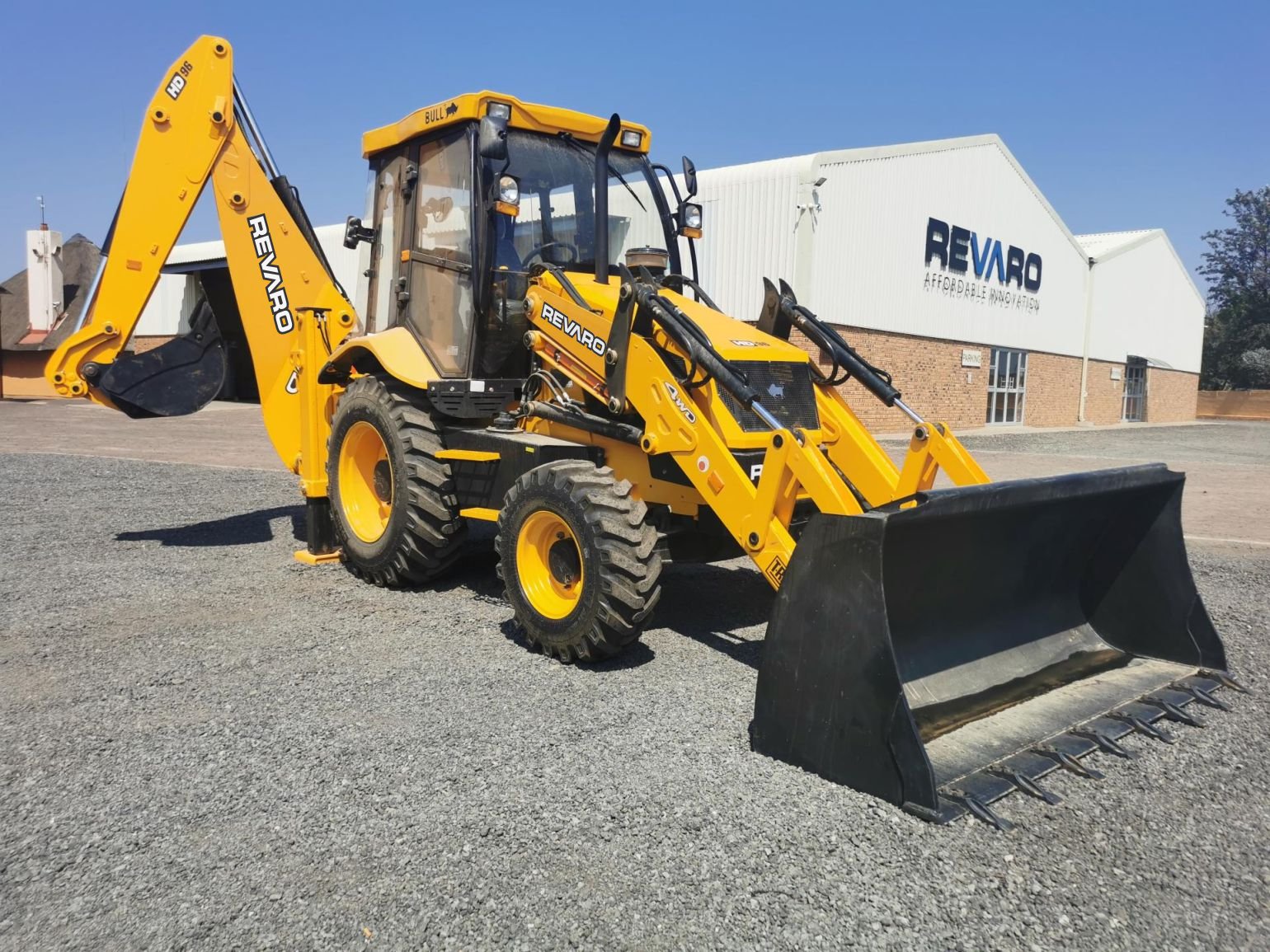

High performance machine with 96HP (70.6kW) engine and Carraro transmission, Revaro's range of Backhoe loaders offer international standards and great return on investment.
- highest bucket breakout force in its class - Heavy weight champion
- 10 % More traction
- Comfortable Driving
- Tallest Dumping Backhoe loader
- Multi loaders bucket options
- Most Fuel efficient Backhoe
- Extraordinary reliability
- Scratch resistant painting
- World class cabin
- World's best parts
- Low cost maintenance
Transmission
The T-REX796 comes with CARRARO synchroshuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.
The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation. On the move gear changes are possible.
AxlesThe pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation. On the move gear changes are possible.
Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.
Front: Steer axle, centrally pivoted with oscillation angle ±16°.
BrakesFront: Steer axle, centrally pivoted with oscillation angle ±16°.
Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.
Two independently operatable foot pedals enable machine to maneuver in tight spaces.
Parking: Hand operated, oil immersed multi disc on the rear axle.
SteeringTwo independently operatable foot pedals enable machine to maneuver in tight spaces.
Parking: Hand operated, oil immersed multi disc on the rear axle.
Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraulic power failure.
Hydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar)
ElectricalHydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar)
180 Ampere-hour 12 volts battery system with alternator and full road lighting.
TyresFront: 2WD: 9.00X16 - I6PR, 4WD: 12.5/80X18 -12PR
Rear: 2WD & 4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00X25-20PR(HEAVY DUTY TYRE)
Turning CircleRear: 2WD & 4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00X25-20PR(HEAVY DUTY TYRE)
 | Inner wheels bracked | Inner wheels not bracked |
| A* Outside loader bucket 8.8 m | A* Outside loader bucket 11.6 m | |
| B Outside Wheels 6.3 m | B Outside Wheels 8.9 m |
Speed | |
|---|---|
| Forward km/hr | Reverse km/hr |
| Max: 40 hm/Hr | Max: 40 hm/Hr |
Hydraulics | |
|---|---|
| SMART technology hydraulics : 3335 PSI (230bar). | Pump flow : 134 LPM at 2200RPM |
Weight | |
|---|---|
| 9000 kgs with Standard GP Bucket Option | |
Service Capacities | ||
|---|---|---|
| System | Service | |
| Hydraulic Tank | 125L | 100L |
| Fuel Tank | 115/150L* | - |
| Engine Coolant | 17L | 15L |
| Engine Oil | 12L | 12L |
| Transmission | 19.5L | 16L |
| Rear Axle | 17L | 17L |
| 4WD Front Axle | 8L | 8L |
| |
|---|---|
|
|
Optional Extras & buckets | |
|---|---|
|
|
| Dimensions | ||
|---|---|---|
| Standard GP Bucket Capacity | 1.1 cu.m | |
| I | Dump Height | 2.96 m |
| J | Load Over Height | 3.39 m |
| K | Pin Height | 3.61 m |
| L | Pin Forward Reach | 0.42 m |
| M | Reach at Ground | 1.47 m |
| N | Reach at full height | 1.28 m |
| O | Reach at full Height bkt Dumped | 0.89 m |
| P | Below ground level DIG Depth | 0.1 m |
| Q | Roll back at Ground | 490 degree |
| R | Dump Angle | 450 degree |
| Bucket Break-out Force | 8183 kgf | |
| Loader Arm Break-out Force | 5251 kgf | |
| Pay Load | 1800 kgf | |
